DigiPrint HD Logo Mat

Product Number 973

DigiPrint HD mats are excellent for featuring a custom logo or artwork printed with the latest innovation in dying technology in high-definition.


  • Revolutionary, HD digital printing
  • Dense carpet allows for fine detail and photographic quality
  • Yarn contains 100% post-consumer recycled plastic
  • Stain resistant
  • Features 150 standard color options.
  • Easy to clean - vacuum or steam clean.
  • No setup fees, no minimums!

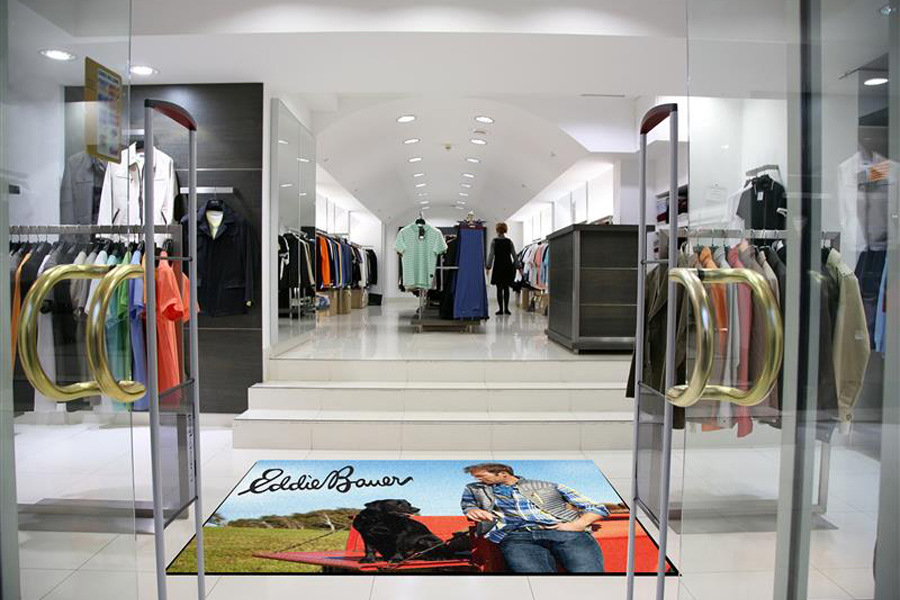

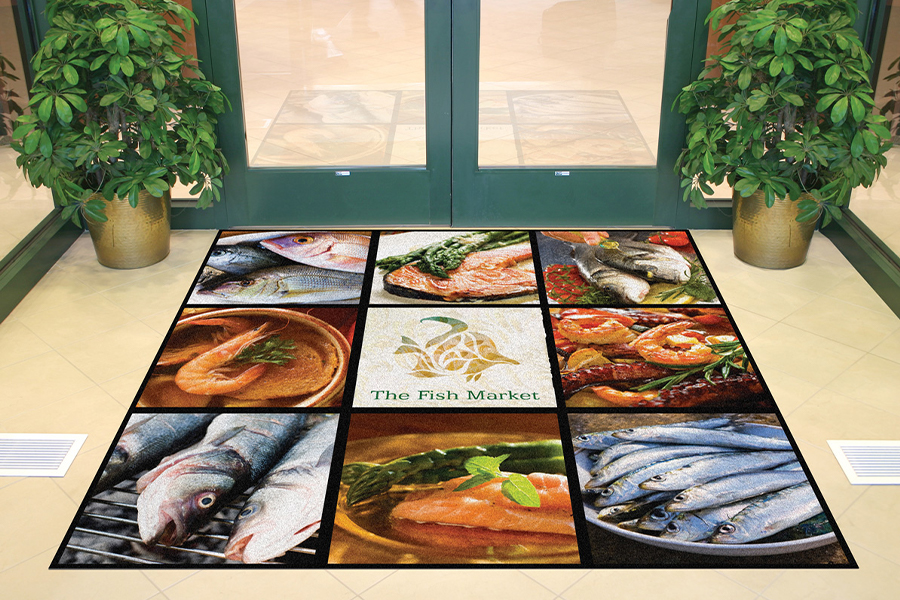

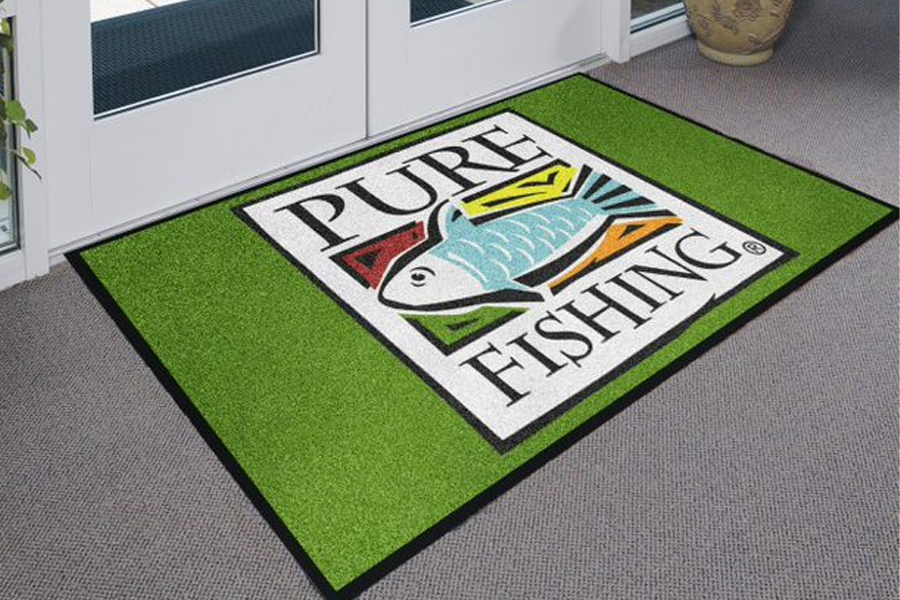

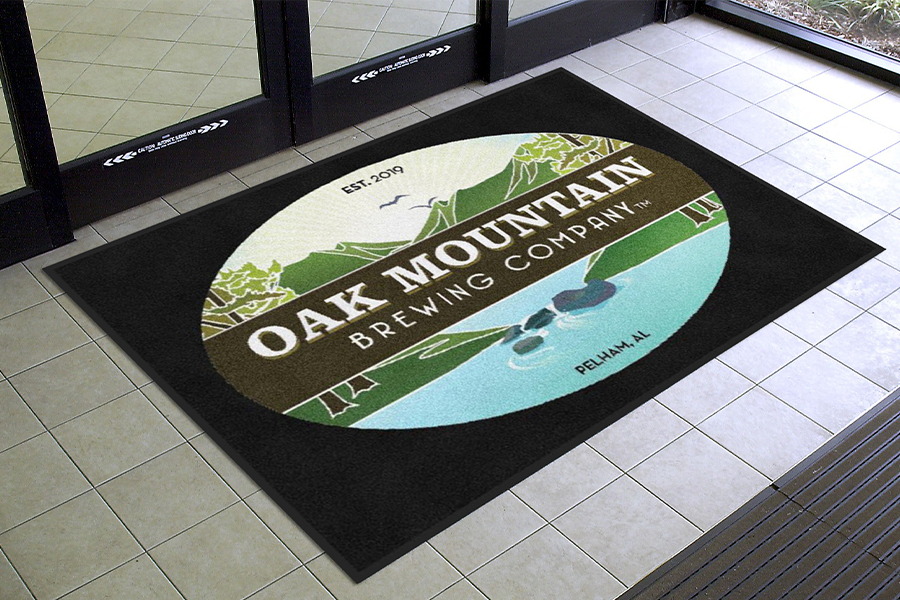

Recommended for indoor commercial use at entryways, in lobbies, at front desks or anywhere you want to display your company logo or message.

2' x 3' (24" x 35")
3' x 4' (35" x 47")
3' x 5' (35" x 59")
3' x 10' (35" x 119")
4' x 6' (45" x 69")
4' x 8' (45" x 95")
5' x 8' (58" x 95")
5' x 10' (58" x 119")
6' x 10' (68" x 119")
6' x 12' (68" x 143")

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

SURFACE
Fiber: PET (polyethylene terephthalate) printed/disperse-dyed yarn

Construction: Cut pile
Weight: 32 ounces/yard2
Substrate: Freudenberg LUTRADUR polyester spunbond non-woven fabric (3.8 ounces/yard2)

BACKING OPTIONS
Material: Nitrile rubber (smooth, universal cleated, full cleated, or suction)
Thickness Options:
Standard 52-mil (body thickness 52-mil; border thickness 94-mil)
Medium duty 65-mil (body thickness 65-mil; border thickness 107-mil)
Heavy duty 90-mil (body thickness 90-mil; border thickness 90-mil)

Material: SBR rubber (smooth, universal cleated, full cleated, or suction)
Thickness:48-mil (body thickness 48-mil; border thickness 90-mil)

OVERALL MAT THICKNESS: 3/8 inch (0.375")

STANDARDS & TESTING

  • Passes standard for the surface flammability of carpets and rugs DOC-FF1-70

DigiPrint HD logo mats are produced using a layering process of color. Colors are matched to our standard palette of 150 colors.  PMS color matching is not available.

Minimum Text Height: 1" for serif fonts and 1/2" for sans serif fonts
Minimum Line Thickness: 1/8" except for white & light colors which should be at least 1/4"
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

Light background colors should be avoided due to their tendency to show dirt on the mat more than a darker or neutral tone.  We also advise against the use of screens, tints, and transparencies in the design because they are not easily converted to our color palette.

Mat Size                               Maximum Imprint Area
2' x 3' (24" x 35")                    23" x 34"
3' x 4' (35" x 47")                    34" x 46"
3' x 5' (35" x 59")                    34" x 58"
3' x 10' (35" x 119")                  34" x 118"
4' x 6' (45" x 69")                    44" x 68"
4' x 8' (45" x 95")                    44" x 94"
5' x 8' (58" x 95")                    58" x 94"
5' x 10' (58" x 119")                    58" x 118"
6' x 10' (68" x 119")                    68" x 118"
6' x 12' (68" x 143")                    68" x 142"

For the best results, utilize the following cleaning method to clean your DigiPrint HD mat:

  • Vacuum regularly (daily in high-traffic commercial areas; weekly in lower traffic areas).
  • Extract or hose off as needed to remove heavy soil/debris.
  • Hang mat to dry.

Always make sure the mat is dry before placing it back in service.
