SuperScrape Impressions

Product Number 3559

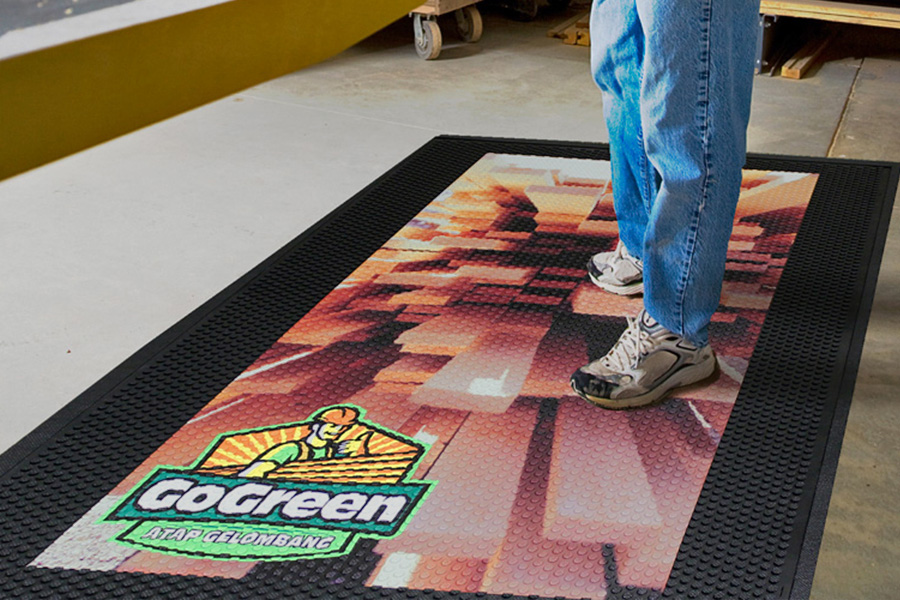

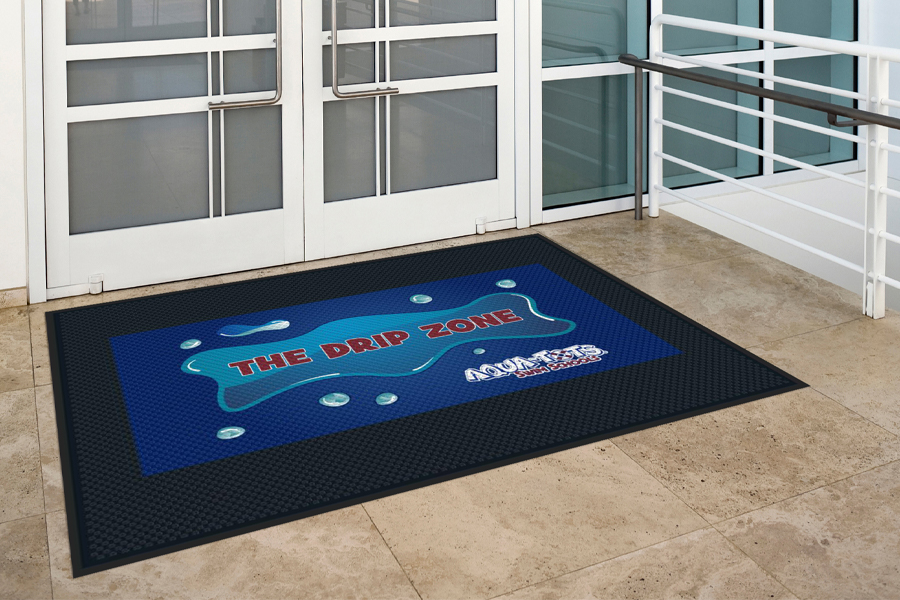

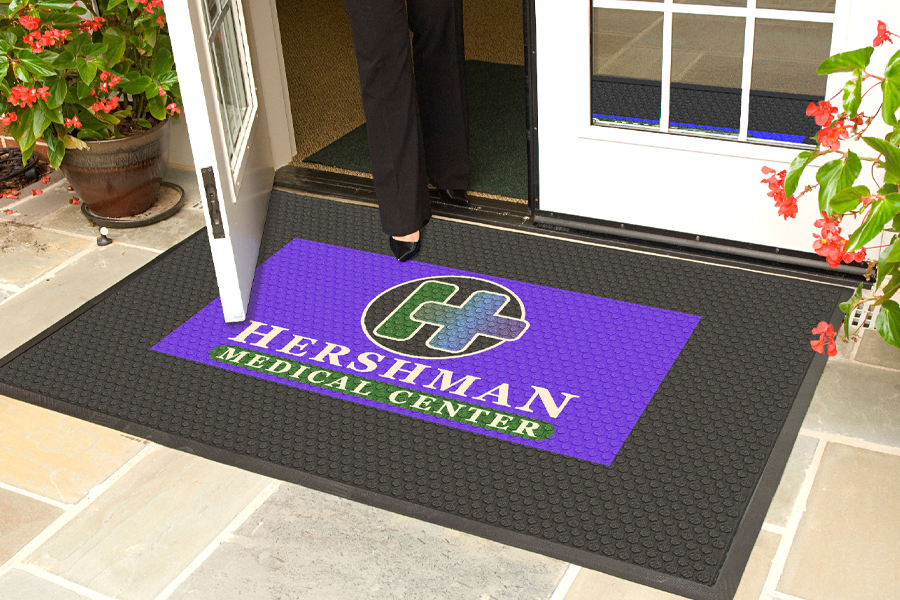

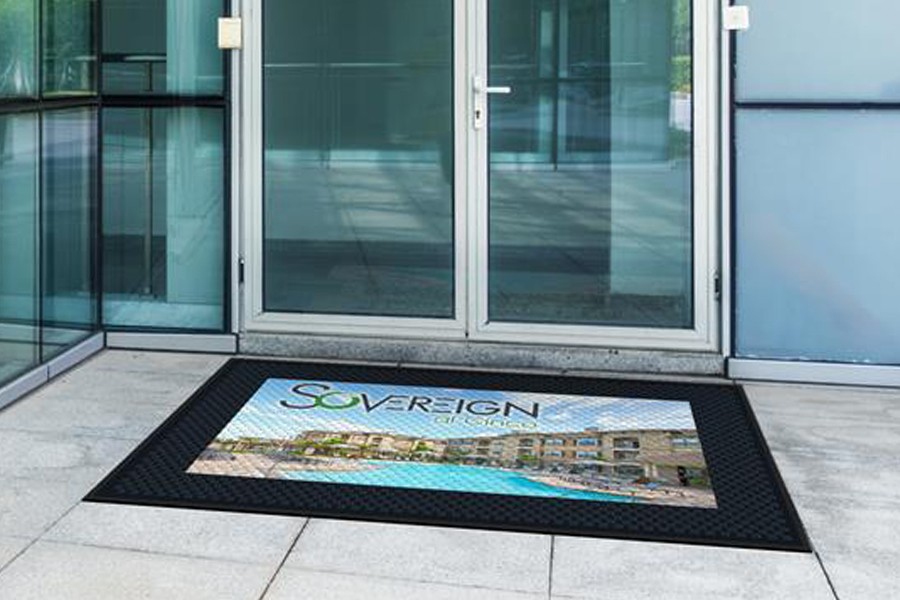

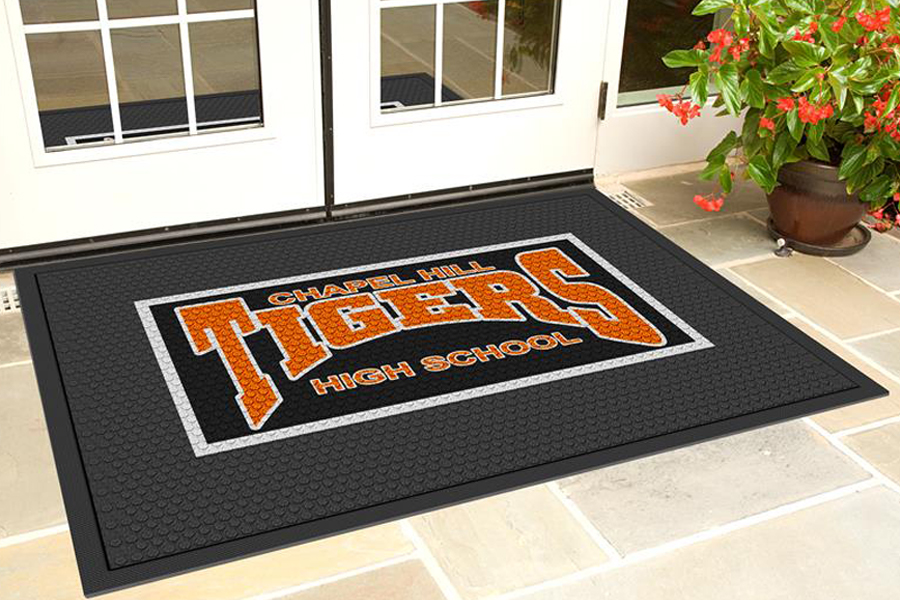

SuperScrape Impressions mats feature a custom logo or artwork on a SuperScrape mat. Multi-colored images are printed on vinyl and heat pressed into a nitrile rubber surface.
  • Photographic quality logos.
  • Features 150 standard color options.
  • Circular surface cleats for scraping and traction.
  • Easy to clean - hose off or sweep.
  • Pantone color matching available for a one-time fee per color.

Recommended for use in commercial and industrial settings where custom branding or messaging is desired along with the debris removal qualities of a scraper mat.

2.5' x 3' (29" x 34")
3' x 4' (34" x 45.5")
3' x 5' (34" x 54.5")
3' x 10' (34" x 111")
4' x 6' (45" x 67.5")
4' x 8' (45" x 95")
6' x 6' (71.5" x 72")
6' x 8' (71.5" x 96")

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

CONSTRUCTION
Material: Rubber
Logo/Image Material: Polymeric film
Thickness: 3/16 inch (0.1875")

STANDARDS & TESTING

  • Certified high-traction by the National Floor Safety Institute (NFSI)
  • Passes DOC-FF1-70 for surface flammability
  • ASTM C1028-96 static coefficient of friction:
         Dry 0.86
         Wet 0.72

A digital print on polymetric film allows customers to customize the SuperScrape mat with logos, images, and messages.   PMS colors can be matched for an additional one-time fee of $580 per PMS color. A maximum of 4 PMS colors may be matched in any given design.*

Minimum Text Height: 1/2" (includes lowercase text)
Minimum Line Thickness: 1/16"
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

White is prone to discolor and cannot be used as the background or any part of the imprint area. The product's color palette offers three light colors to use in place of White:  F5, N9 and N10. The background color of the imprint area should not be set to these light colors. It is difficult to keep the logo clean through the manufacturing process.

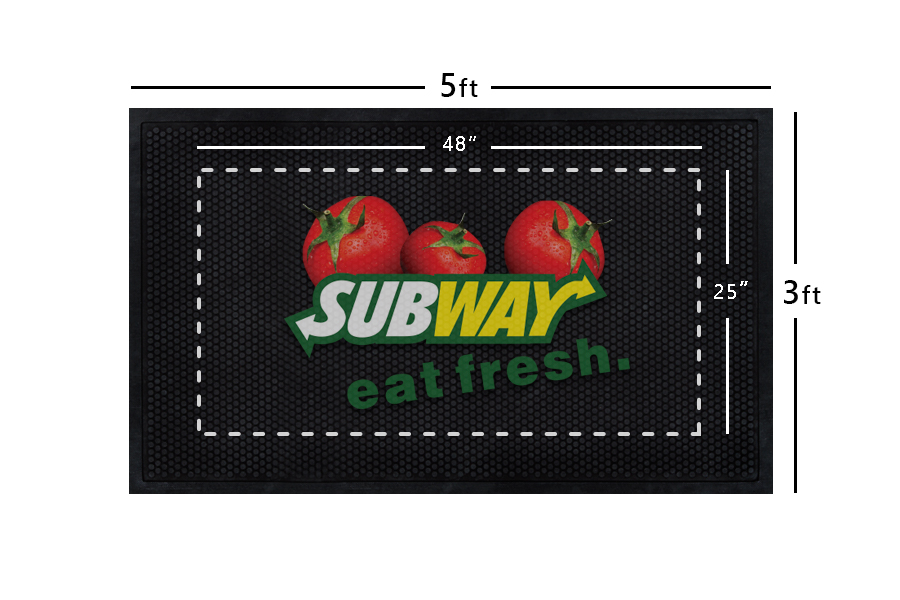

Mat Size                             Imprint Area

2.5' x 3' (29" x 34")          20" x 25"
3' x 4' (34" x 45.5")          25" x 36"
3' x 5' (34" x 54.5")          25" x 48"
3' x 10' (34" x 111")             25" x 96"
4' x 6' (45" x 67.5")          36" x 50"
4' x 8' (45" x 95")             36" x 70"
6' x 6' (71.5" x 72")           43" x 50"
6' x 8' (71.5" x 96")           43" x 80"

*We will do our best to match a PMS color, however, color matching can be extremely challenging.  Although we can get close, color is never an exact science and variations will occur.  An exact color match is vulnerable to many factors, including the fact that we use a hot press to combine the rubber surface and cushion backing.  Heat from the press often causes the color to lighten. Typically, we can get close to most PMS colors, but the final color may be a few shades off.  For the PMS color to be as close as possible, we require additional time to create the proof sketch.

SuperScrape Impressions mats can be commercially laundered (see laundering instructions) or cleaned using the instructions below.

  • Scrub with a deck brush (when needed) using detergent with a neutral pH.
  • Rinse with a hose or pressure washer.
  • Lay flat or hang to dry.
