WaterHog Max Roll Goods Inlay

Product Number 2268
WaterHog Max mats are durable mats with the ability to trap dirt and moisture, keeping your floors clean, dry, and safe. Max mats feature a herringbone pattern surface.
  • Absorbs up to 1.5 gallons of water per square yard
  • Durable, UV resistant
  • Easy to clean - vacuum, hose off or steam clean

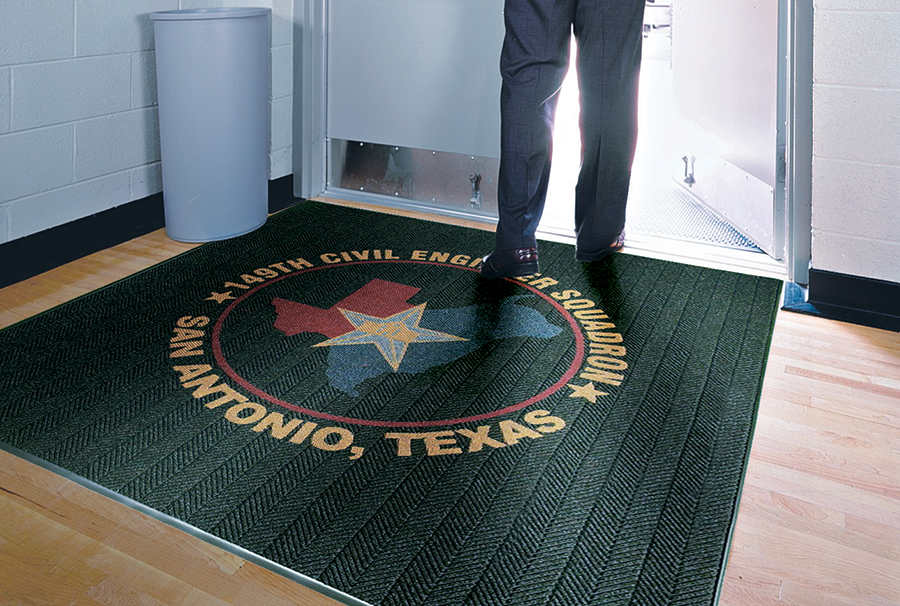

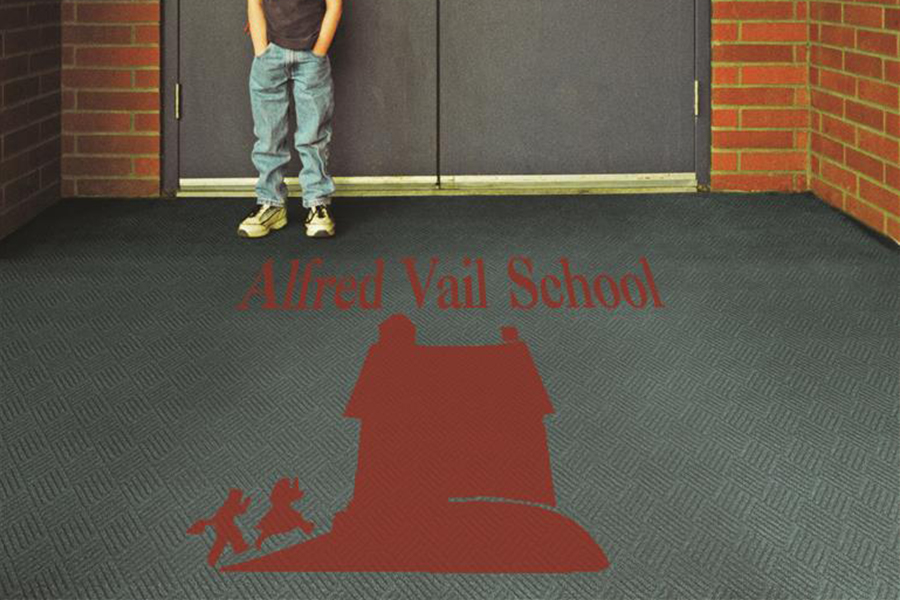

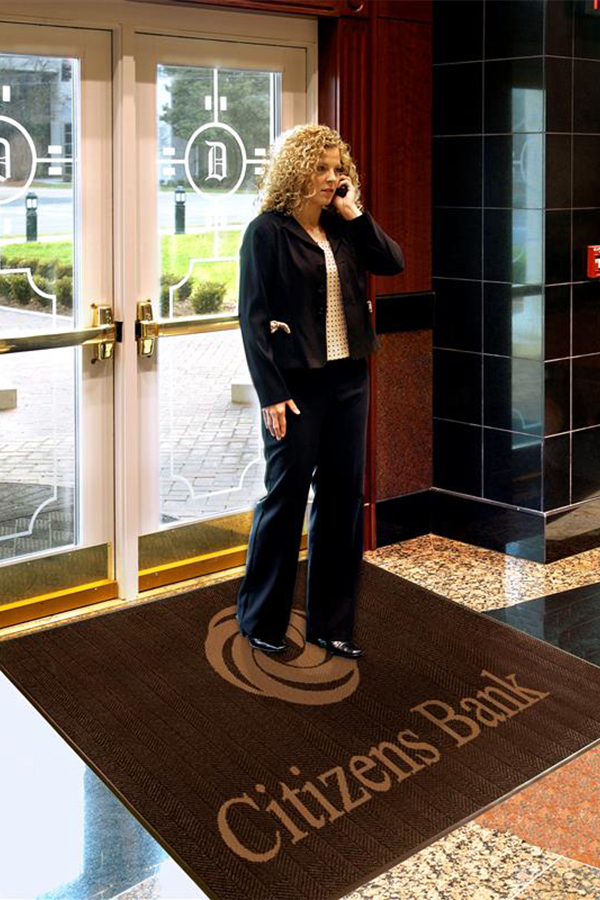

Recommended for high traffic, indoor and outdoor commercial use at entryways, in lobbies, at front desks or anywhere you want to provide a non-slip, heavy durability application.

Custom sizes are available in the following widths up to 50' in length.  Please note that widths over 6' are manufactured by seaming together two 6' wide mats and trimming as needed.

  • 3' widths
  • 4' widths
  • 5' widths
  • 6' widths
  • 7' widths
  • 8' widths
  • 9' widths
  • 10' widths
  • 11' widths
  • 12' widths

The minimum size for a custom roll goods mat is 3' x 3'.
The maximum custom size is 12' x 50'.
Available with smooth backing only.

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time.  Tolerable manufacturing size variance is 3-5%.

Fiber: Solution-dyed PET (polyethylene terephthalate), 3% latex
Weight: 30 ounces/yard2
Construction: Needle-punched
Design: Herringbone

Logo Material: Solution-dyed polypropylene
Weight: 52 ounces/yard2
Construction: Needle-punched

Material: SBR rubber - smooth only
Thickness: 78-mil
OVERALL MAT THICKNESS: 3/8 inch (0.375")


  • Certified high-traction by the National Floor Safety Institute (NFSI)
  • Passes DOC-FF1-70 for the surface flammability of carpets

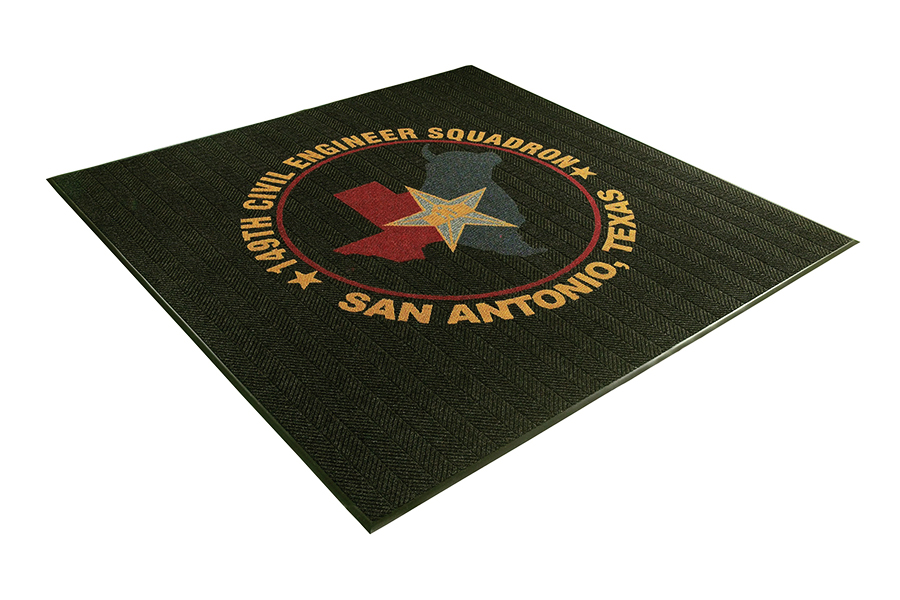

WaterHog Max Roll Goods Inlay mats are produced using an inlay process, where colored material is cut and pieced together by hand before pressing into rubber.  As a result, there are very strict design requirements for this product.

PMS color matching is not available.

Minimum Text Height: 3" (includes lower case text)
Minimum Line Thickness: 3/8"

Any space between letters or design elements must be at minimum 3/8"

These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

Gradients, tints, screens and transparencies are not supported and should not be used.

WaterHog Max Roll Goods mats should be vacuumed regularly (daily in high-traffic areas; weekly in lower-traffic applications).  They can also be cleaned with an extractor or hosed off as necessary to remove heavy soil. Hang dry and always make sure they are dry before placing them back in service.

Determine the number of square feet that you will need.  Measure the length and width of the area you wish to cover.   Multiply the width by the length to get the square footage of the space.  For areas that are not rectangular, break the area into smaller rectangles.  Multiply the width times the length for each of the smaller rectangles separately, and add up all the results to arrive at the overall square footage.

Remove any old floor coverings, debris, and adhesives from the floor.  Clean the entire floor surface of any dust, drywall mud, etc.   Once the floor has been cleaned, allow it to dry completely.   Allow the matting material to sit in the area uninstalled for several hours so it can acclimate to room temperature prior to installation.

Apply your adhesive to the prepared floor according to the adhesive manufacturer's directions.  We recommend CA024 multi-purpose solvent-free adhesive for all installations, both indoor and outdoor.  Never use an adhesive that contains solvents.  Similar to laying carpet, roll the matting out over the installation area (paying careful attention to the location and orientation of your logo).  Carefully trim the excess material around the perimeter using a utility knife.
