Hog Heaven Impressions Logo Mat

Product Number 3422

Hog Heaven Impressions mats feature your custom logo or artwork on a nitrile rubber surface while providing exceptional anti-fatigue properties.


  • Photographic quality printing.

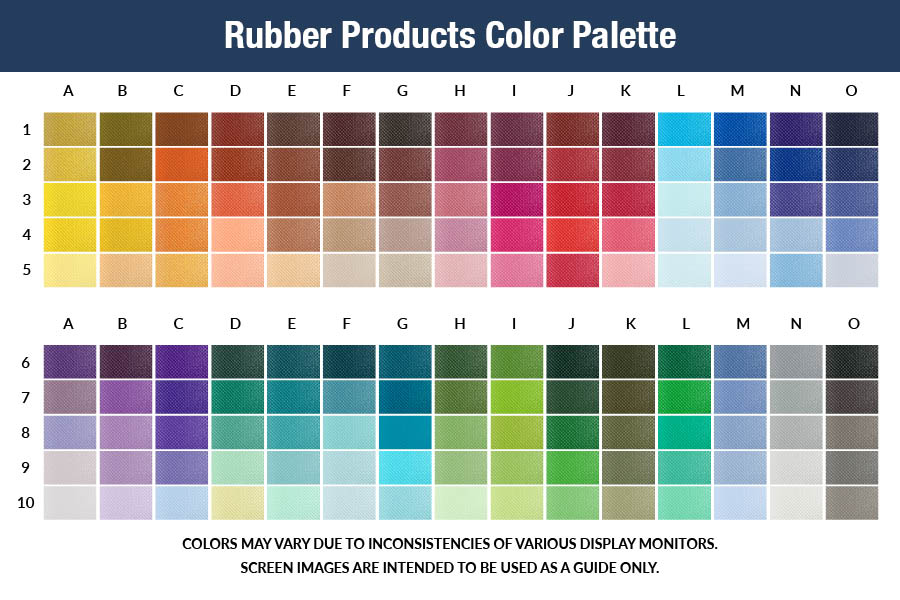

  • Features 150 standard color options.
  • Exceptional anti-fatigue properties.
  • Diamond surface pattern offers superior traction.
  • UV, chemical and oil resistant.
  • Easy to clean - hose off or sweep.

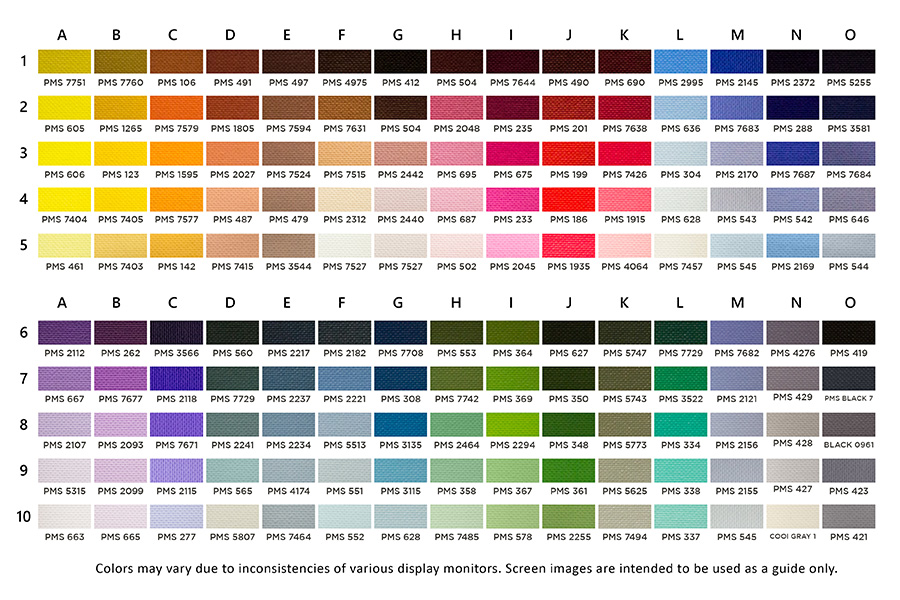

  • Pantone color matching available for a one-time fee per color.

Recommended for use in high traffic, indoor applications where branding or messaging is desired along with providing anti-fatigue benefits.

2' x 3' (24" x 33")
3' x 5' (33" x 58")
3' x 12' (33" x 142")
4' x 6' (46" x 69")

Pricing for logo mats is based on individual design number. Different design numbers may not be combined for quantity discounts.

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

SURFACE
Material: Nitrile rubber
Logo/Image Material: Polymeric film

CUSHION
Material: High-density, closed-cell nitrile/PVC-blended foam

OVERALL MAT THICKNESS: 5/8 inch (0.6250" )

STANDARDS & TESTING

  • Durometer: 56
  • Compression Deflection:
         47.8% at 20 psi
         66.0% at 40 psi
  • Certified high-traction by the National Floor Safety Institute (NFSI)
  • ASTM C1028-96 static coefficient of friction:
         Dry 0.79
         Wet 0.75
  • Passes flammability standard DOC-FF1-70
  • Melt point over 500 degrees F. Tested at temperatures up to 1800 degrees F for welding/slag resistance (specific results from test available upon request)

A digital print on polymetric film allows customers to customize the Hog Heaven anti-fatigue mat with logos, images, and messages. PMS colors may be matched for an additional one-time fee.*

Minimum Text Height: 1/4"
Minimum Line Thickness: 1/16"
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

White should not be used as the background color of the imprint area.

Mat Size                             Maximum Imprint Area
2' x 3' (24" x 32")                    12" x 22"
3' x 5' (32" x 58")                    24" x 44"
3' x 12' (32" x 142")                    24" x 120"
4' x 6' (46" x 70")                    36" x 50"

*We will do our best to match a PMS color, however, color matching can be extremely challenging.  Although we can get close, color is never an exact science and variations will occur.  An exact color match is vulnerable to many factors, including the fact that we use a hot press to combine the rubber surface and cushion backing.  Heat from the press often causes the color to lighten. Typically, we can get close to most PMS colors, but the final color may be a few shades off.  For the PMS color to be as close as possible, we require additional time to create the proof sketch.  Specific PMS colors may be matched for a one-time additional fee of $270.38 per PMS color.

Hog Heaven mats can be cleaned by scrubbing with a deck brush (when needed), using detergent with a neutral pH, and rinsing with a hose or pressure washer.  Mats should be laid flat or hung to dry.
