Hog Heaven Impressions

Product Number 3422

Hog Heaven Impressions mats feature your custom logo or artwork on a nitrile rubber surface while providing exceptional anti-fatigue properties.

  • Photographic quality printing
  • Features 150 standard color options
  • Exceptional anti-fatigue properties
  • Diamond surface pattern offers superior traction
  • UV, chemical and oil resistant
  • Easy to clean - hose off or sweep
  • Pantone color matching available for a one-time fee per color

Recommended for use in high traffic, indoor applications where branding or messaging is desired along with providing anti-fatigue benefits.

2' x 3' (24" x 33")
3' x 5' (32" x 58")
4' x 6' (46" x 69")

Pricing for logo mats is based on individual design number. Different design numbers may not be combined for quantity discounts.

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

Material: Nitrile rubber
Logo/Image Material: Polymeric film

Material: High-density, closed-cell nitrile/PVC-blended foam

OVERALL MAT THICKNESS: 5/8 inch (0.6250" )


  • Compression Deflection:
         47.8% at 20 psi
         61.6% at 40 psi
  • Certified high-traction by the National Floor Safety Institute (NFSI)
  • ASTM C1028-96 static coefficient of friction:
         Dry 0.79
         Wet 0.75
  • Passes flammability standard DOC-FF1-70
  • Melt point over 500 degrees F. Tested at temperatures up to 1800 degrees F for welding/slag resistance (specific results from test available upon request)

A digital print on polymetric film allows customers to customize the Hog Heaven anti-fatigue mat with logos, images, and messages.  PMS colors can be matched for an additional one-time fee of $580 per PMS color. A maximum of 4 PMS colors may be matched in any given design.*

Minimum Text Height: 1/4"
Minimum Line Thickness: 1/16"
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

White is prone to discolor and cannot be used as the background or any part of the imprint area. The product's color palette offers three light colors to use in place of White:  F5, N9 and N10. The background color of the imprint area should not be set to these light colors. It is difficult to keep the logo clean through the manufacturing process.

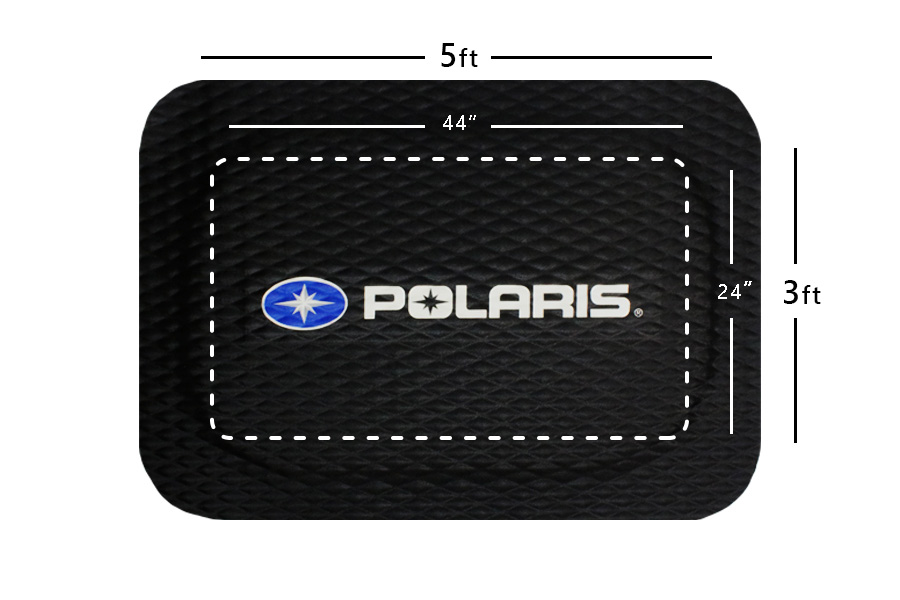

Mat Size                             Maximum Imprint Area
2' x 3' (24" x 33")                   12" x 22"
3' x 5' (32" x 58")                    24" x 44"
4' x 6' (46" x 69")                    36" x 50"

*We will do our best to match a PMS color, however, color matching can be extremely challenging.  Although we can get close, color is never an exact science and variations will occur.  An exact color match is vulnerable to many factors, including the fact that we use a hot press to combine the rubber surface and cushion backing.  Heat from the press often causes the color to lighten. Typically, we can get close to most PMS colors, but the final color may be a few shades off.  For the PMS color to be as close as possible, we require additional time to create the proof sketch.

Hog Heaven mats can be cleaned by scrubbing with a deck brush (when needed), using detergent with a neutral pH, and rinsing with a hose or pressure washer.  Mats should be laid flat or hung to dry.
