Berber Roll Goods Inlay

Product Number 2283

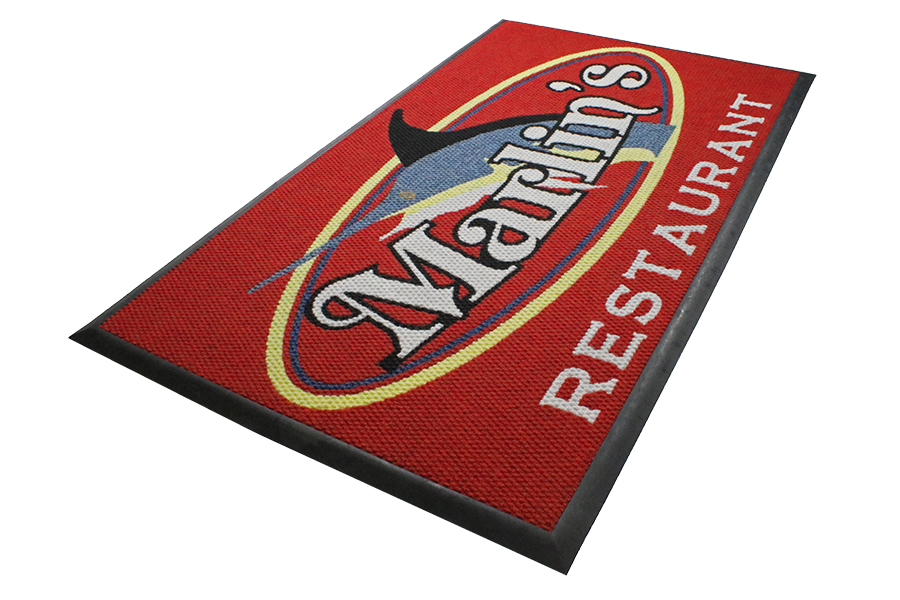

Berber Inlay mats feature your custom logo or artwork inlaid on a Berber fabric where the surface can dry your feet while being able to withstand extremely high traffic.
  • Great for large entrance areas and custom applications.
  • Custom shapes and sizes are available.
  • Durable, UV resistant.
  • Easy to clean - vacuum or steam clean.

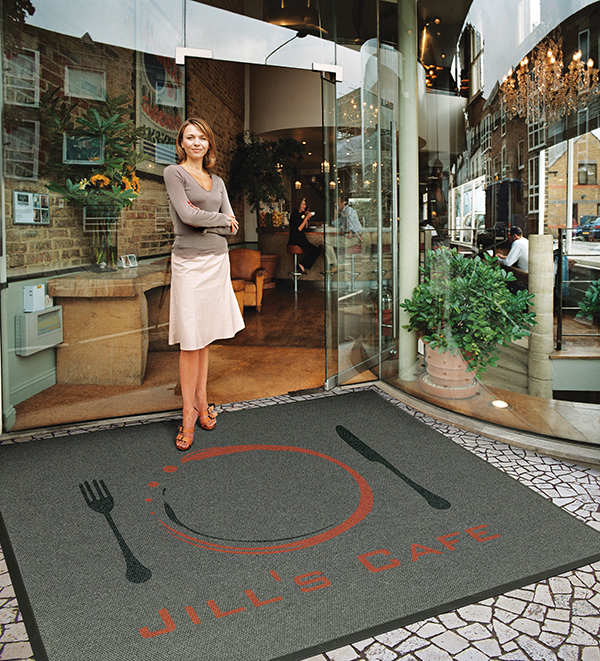

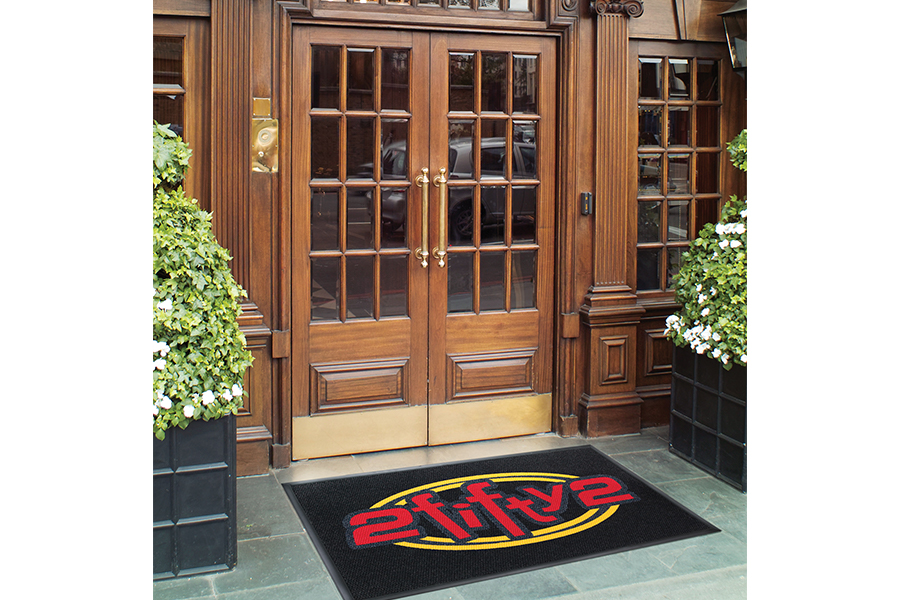

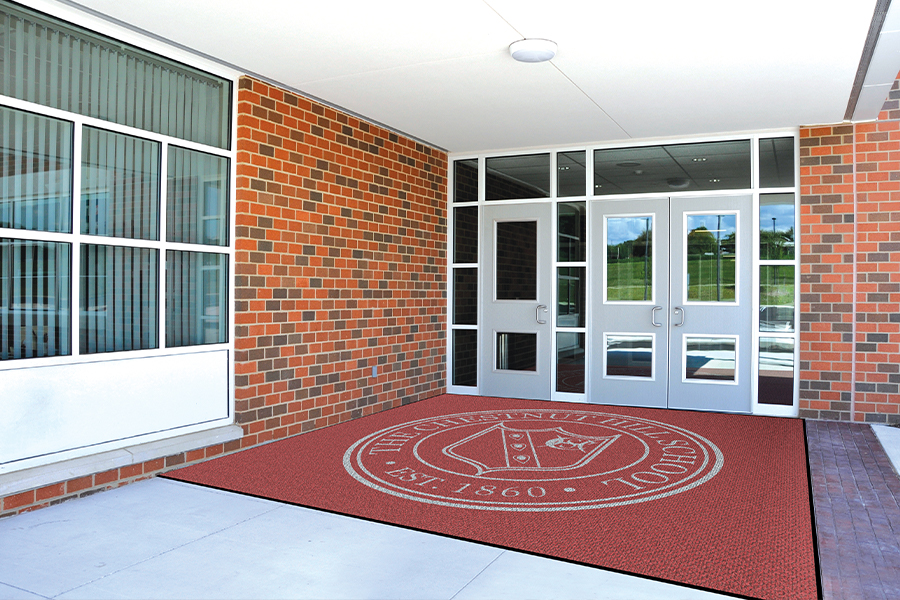

Recommended for indoor and outdoor commercial use at entryways, in lobbies, at front desks or anywhere you want to display your company logo or message.

Custom sizes are available in the following widths up to 50' in length.  Please note that widths over 6' may be seamed based on material availability.

  • 3' widths
  • 4' widths
  • 5' widths
  • 6' widths
  • 7' widths
  • 8' widths
  • 9' widths
  • 10' widths
  • 11' widths
  • 12' widths

The minimum size for a custom roll goods mat is 3' x 3'.
The maximum custom size is 12' x 50'.

Available with smooth backing only.

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time.  Tolerable manufacturing size variance is 3-5%.

SURFACE
Fiber: Solution-dyed polypropylene
Weight: 52 ounces/yard2
Construction: Needle-punched
Design: Hobnail

BACKING
Material: Performance rubber

OVERALL MAT THICKNESS: 3/8 inch (0.375")

STANDARDS & TESTING

  • Passes DOC-FF1-70 for the surface flammability for the surface of carpets

Berber Inlay Logo mats are produced using an inlay process, where colored material is cut and pieced together by hand before pressing into rubber.  As a result, there are very strict design requirements for this product.  PMS color matching is not available.

Minimum Text Height: 3" (includes lower case text)
Minimum Line Thickness: 3/8"
Any space between letters or design elements must be at minimum 3/8".  The text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

Gradients, tints, screens and transparencies are not supported and should not be used.

Berber Roll Goods Inlay Logo mats can be cleaned using the instructions below:

  • Vacuum regularly (daily in high-traffic commercial areas; weekly in lower traffic areas).
  • Extract or hose off as needed to remove heavy soil/debris.
  • Hang mat to dry.

Always make sure the mat is dry before placing it back in service.

Measure
Determine the number of square feet that you will need. Measure the length and width of the area you wish to cover. Multiply the width by the length to get the square footage of the space. For areas that are not rectangular, break the area into smaller rectangles. Multiply the width times the length for each of the smaller rectangles separately and add up all the results to arrive at the overall square footage.

Prepare
Remove any old floor coverings, debris, and adhesives from the floor. Clean the entire floor surface of any dust, drywall mud, etc. Once the floor has been cleaned, allow it to dry completely. Allow the matting material to sit in the area uninstalled for several hours so it can acclimate to room temperature prior to installation.

Install
Apply your adhesive to the prepared floor according to the adhesive manufacturer's directions. We recommend CA024 multi-purpose solvent-free adhesive for all installations both indoor and outdoor. Never use an adhesive that contains solvents. Similar to laying carpet, roll the matting out over the installation area (paying careful attention to the location and orientation of your logo).  Carefully trim the excess material around the perimeter using a utility knife.
